Paving Stone Layouts for Outdoor Spaces
A large assortment of paver layout patterns can be downloaded to support the process and presentation of your creativity. Search by Collections or by Layout Types. Downloads are available as hatch (.pat) files or in full-size pages in PDF format. Or, download all hatch patterns in one file, angelus_pavers.pat.
Ashlar
% Varies 6x6, 6x12, 12x12
Castle Cobble Random Ashlar
Varied % of Castle Cobble I and II apprx. 85% I and 15% II
Courtyard Ashlar 45°
73% Courtyard Combo, 27% 15 x 15 Courtyard
Courtyard Stone Pattern 8
17% Stone A, 26% Stone B, 19% Stone C, 38% Stone D Note: Appx 12 sq ft/pallet are not used in this pattern. They can be used for borders or cuts.
Courtyard Stone Pattern 8 45°
17% Stone A, 26% Stone B, 19% Stone C, 38% Stone D Note: Appx 12 sq ft/pallet are not used in this pattern. They can be used for borders or cuts.
Estate Cobble Random Ashlar
Varied % of Estate Cobble I and II, appx. 85% I and 15% II

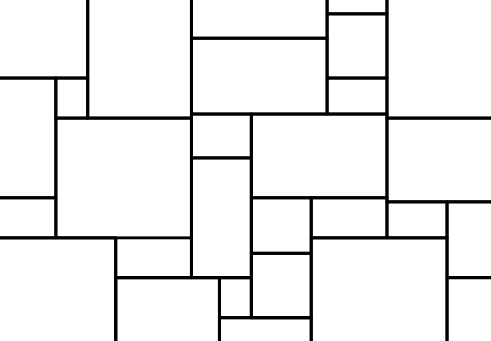

Heartland Ashlar
100% Heartland
Paseo I & II Ashlar
77% Paseo I, 23% Paseo II

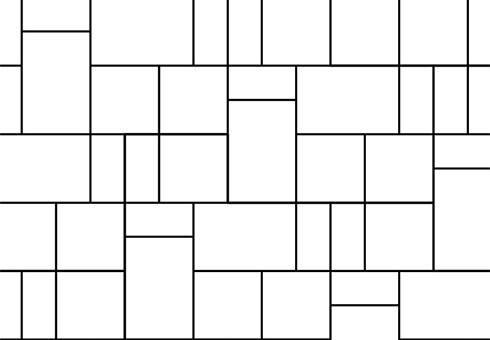

Pavilion I & II Random Ashlar
77% Pavilion I, 23% Pavilion II
